Desktop Diode Laser System(H-513) – TEC Cooling + Handpiece Display

A professional-grade desktop diode laser device for aesthetic clinics, featuring active TEC handpiece cooling and a handpiece-mounted parameter display.

Product Overview

This desktop diode laser system is designed for professional hair removal applications. The device features two key operator-centric design elements: an active TEC (Thermoelectric Cooling) system integrated into the handpiece, and a digital display screen on the handpiece for real-time parameter monitoring. The compact desktop form factor allows easy placement on treatment counters or mobile carts, making it suitable for aesthetic clinics, beauty centers, and medical spas with limited space.

How It Works

Diode Laser Technology for Hair Removal

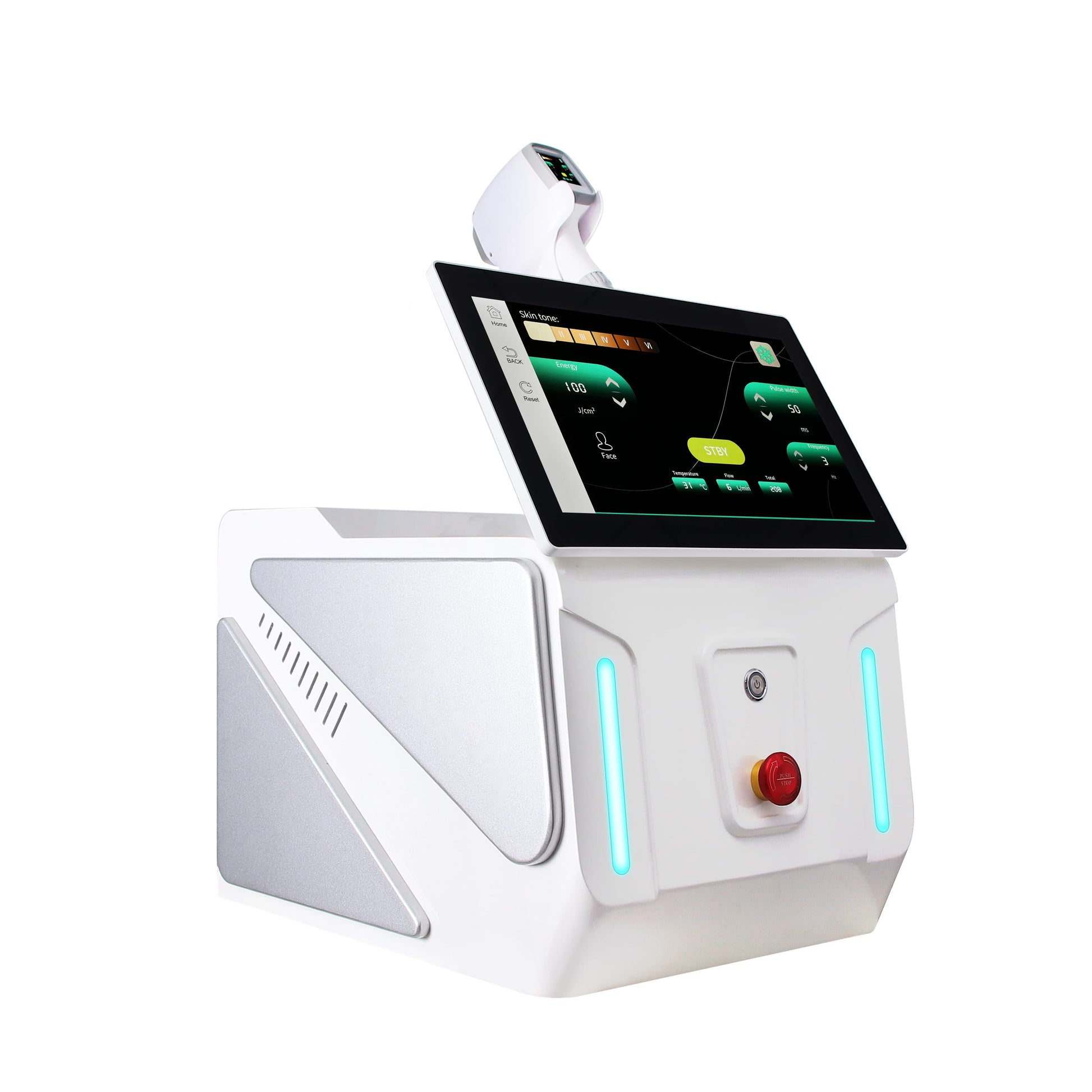

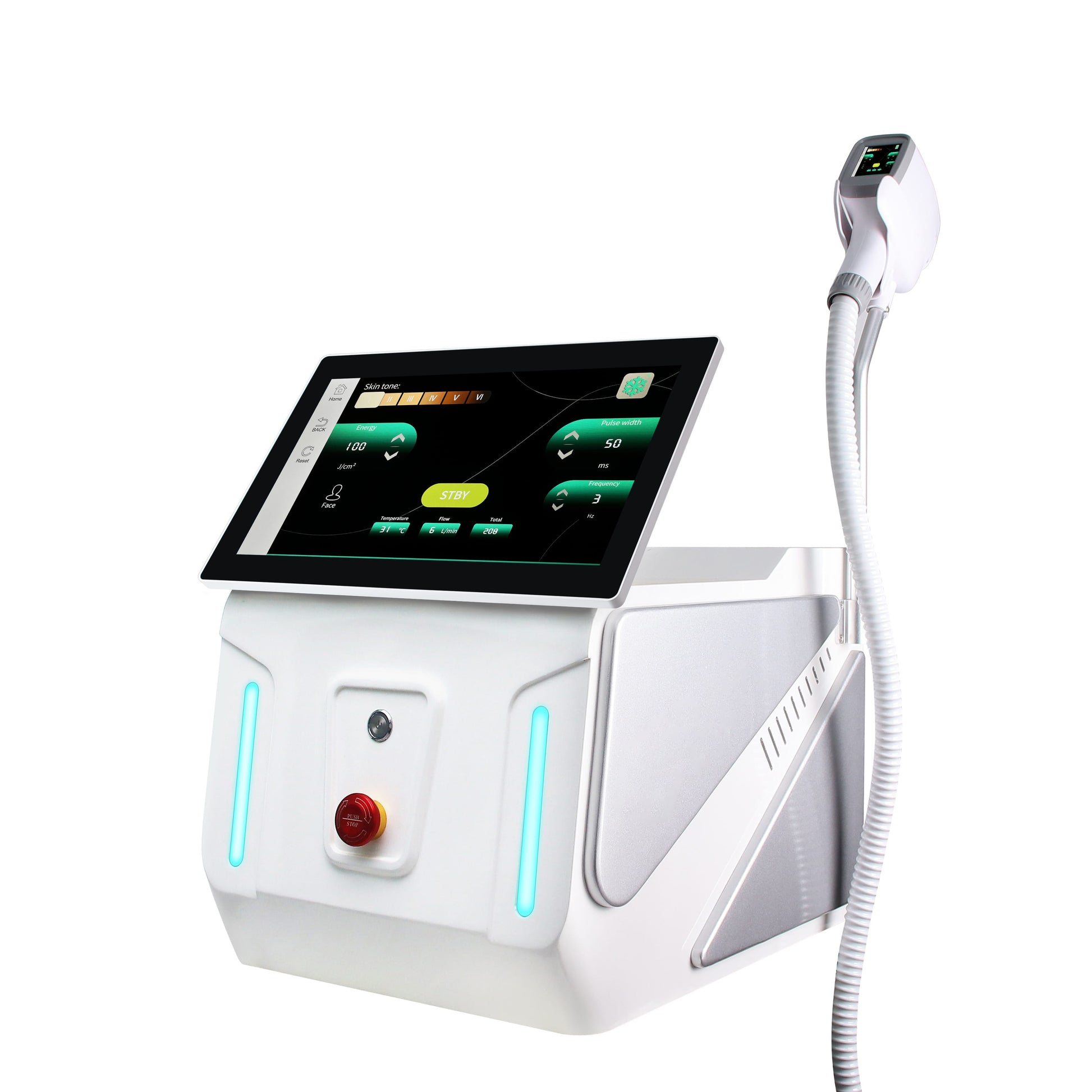

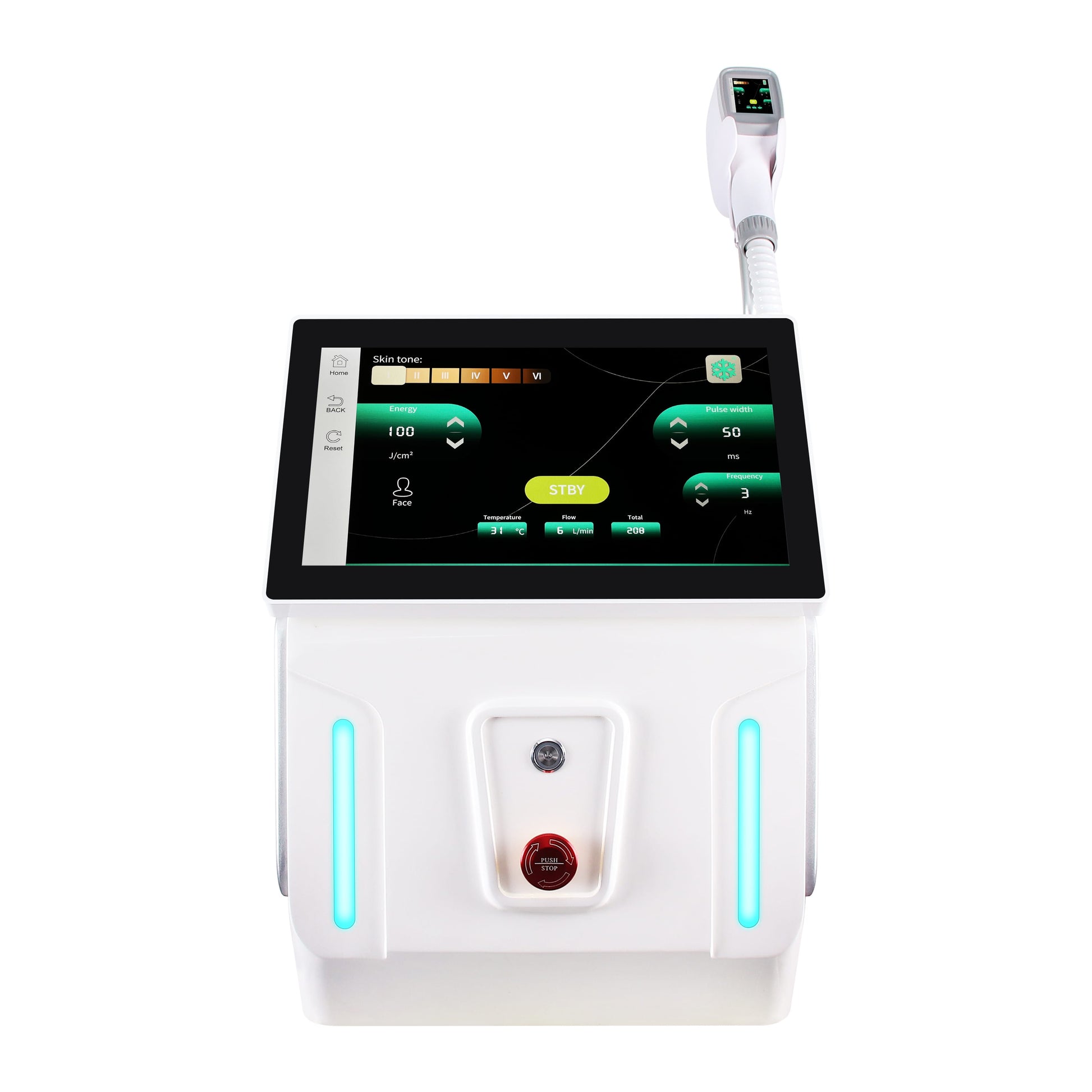

The diode laser emits specific wavelengths of light (typically 755nm, 808nm, and/or 1064nm) that are preferentially absorbed by melanin in the hair follicle. The energy is converted into localized effects, targeting the hair growth structure. Multiple wavelengths allow operators to address various skin types and hair colors. The host console features a touch screen interface for parameter selection, while the handpiece-mounted display provides real-time operational feedback.

TEC Semiconductor Cooling System

The TEC (Thermoelectric Cooling) module is positioned inside the handpiece tip—the cold side contacts the sapphire or metal cooling window directly, cooling the skin contact surface; the hot side dissipates heat through heat sinks and micro fans. The control system adjusts cooling intensity based on the selected treatment mode and skin response.

When the cooling mode is activated, the TEC system begins cooling the skin contact surface within one second of activation, significantly reducing thermal sensation at the skin surface without the need for pre-cooling delays.

Handpiece Display Screen

The handpiece is equipped with an integrated display screen that shows the current operating parameters, including:

• Selected wavelength

• Energy output level

• Pulse duration

• Frequency setting

• Real-time contact temperature monitoring

This allows the operator to verify and adjust parameters directly from the handpiece during treatment, improving workflow efficiency without needing to return to the host console.

Key Design & Technical Features

TEC Cooling System – Key Features

Handpiece Display – Key Functions

Common Application (as intended by device design)

• Professional hair removal treatments on various body areas (legs, arms, underarms, back, chest, bikini line, face)

Typical Operation Process

1. Client Assessment – Perform comprehensive screening (skin type, hair color, medical history, contraindications).

2. Preparation – Clean treatment area. Apply protective eyewear to operator and client.

3. Parameter Selection – Set wavelength, energy level, pulse duration, frequency, and cooling intensity via host touchscreen.

4. Handpiece Verification – Confirm real-time parameters on handpiece display before treatment.

5. Treatment Delivery – Activate TEC cooling, apply handpiece to target area, then press the laser emission button.

6. Post-Treatment Care – Provide aftercare instructions. Apply soothing skincare as needed.

Technical Parameters (Please confirm based on your actual device)

Packaging Information

Safety & Contraindications (Must Read)

✅ Operator Requirements:

• Professional use only; operator training required

• Eye protection must be worn by both operator and client during treatment

❌ Absolute Contraindications (do not treat):

• Pregnancy or breastfeeding

• Active skin infections, open wounds, eczema, or dermatitis in the treatment area

• Recent sun exposure (tanned skin) in the treatment area

• Photosensitivity disorders or use of photosensitizing medications

• Malignant lesions in the treatment area

• Use of isotretinoin (Accutane) within the past 6 months

• Epilepsy or conditions triggered by light stimulation

• Bleeding disorders or use of anticoagulants

• Implantable electronic devices (pacemakers, defibrillators, etc.)

• Keloid or hypertrophic scar tendency

⚠️ Possible temporary effects (typically resolve within days to weeks):

• Temporary redness (erythema) in the treated area

• Mild swelling (edema)

• Temporary tenderness or discomfort

• Temporary changes in skin pigmentation (rare)

⚠️ Important Operational Notes:

• Always perform a test spot on a small inconspicuous area before full treatment

• TEC cooling reduces but does not completely eliminate sensation during treatment

• Different skin types and hair colors may require different wavelength and energy settings

• Proper client screening is essential for safe operation

Frequently Asked Questions

Q: Does the handpiece display show real-time parameters?
A: Yes, the integrated handpiece screen displays current operating parameters including wavelength, energy level, pulse duration, frequency, and real-time contact temperature, allowing convenient monitoring during treatment.

Q: Can parameters be adjusted from the handpiece?
A: Yes, depending on the model configuration, certain parameters can be adjusted directly from the handpiece interface, improving workflow efficiency.

Q: How fast does the TEC cooling start?
A: Once the cooling mode is activated, the TEC system begins cooling the skin contact surface within one second, providing rapid surface cooling to help reduce thermal sensation.

Q: Is the device suitable for all skin types?
A: Different wavelengths have different absorption and penetration characteristics. Operators must select appropriate parameters based on individual client assessment. Test spots are recommended.

Why Choose This Desktop Diode Laser System?

• Handpiece display – Real-time parameter monitoring without returning to host console

• Active TEC cooling – Starts cooling within one second after cooling mode is activated

• Desktop form factor – Compact, space-saving design

• 37kg gross package weight – Sturdy and reliable

• Free user manual + video training access
