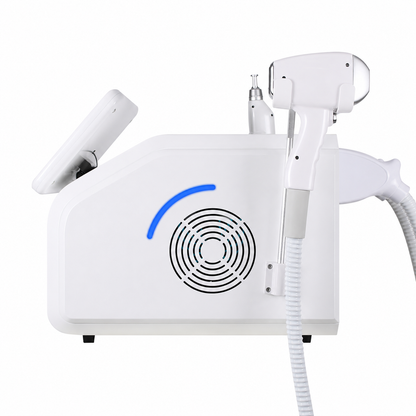

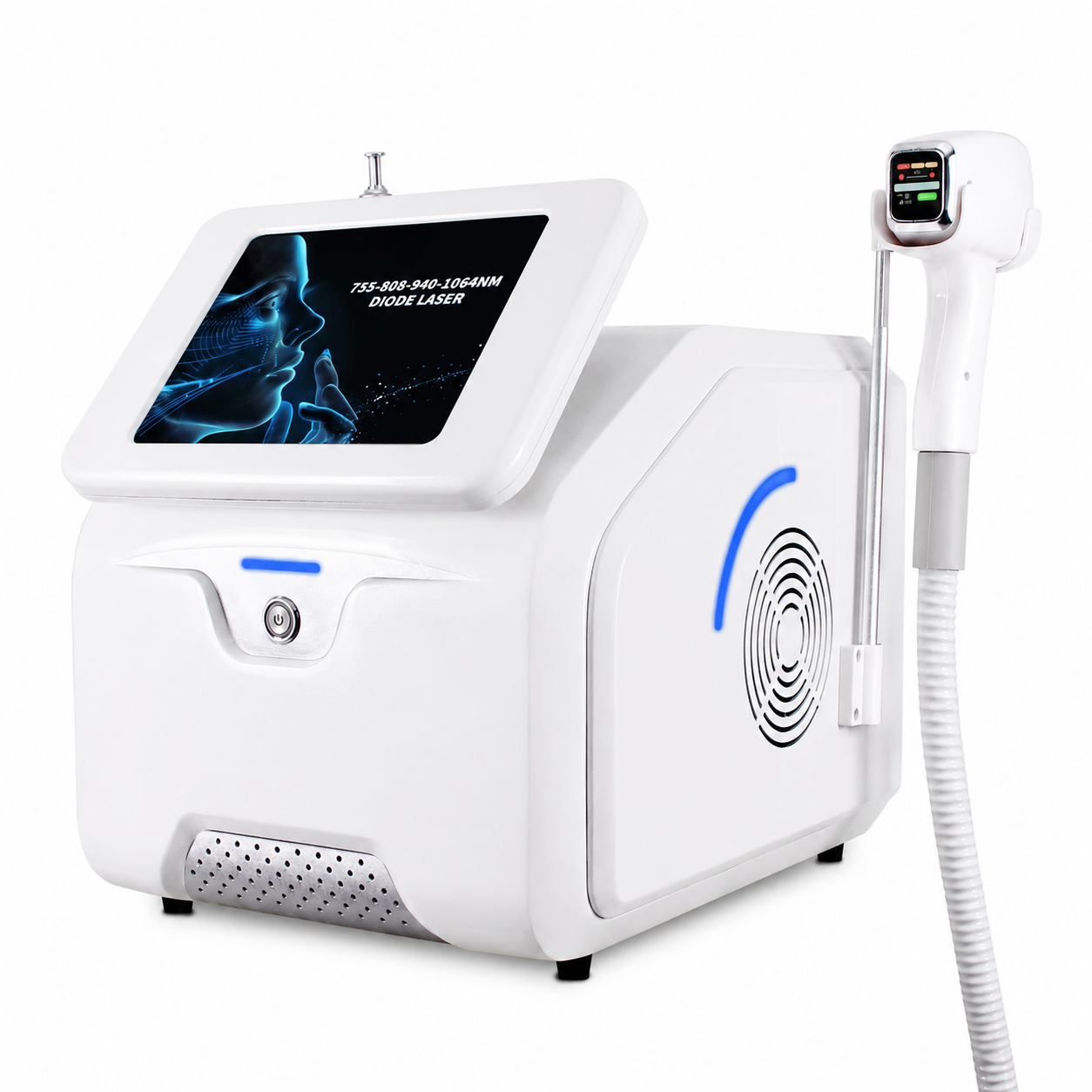

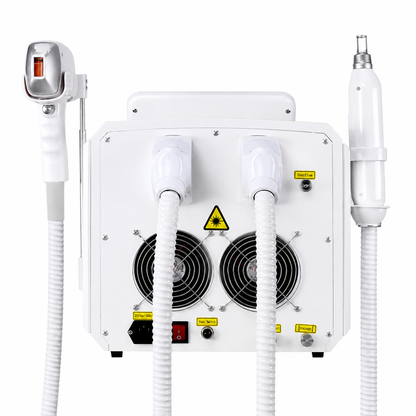

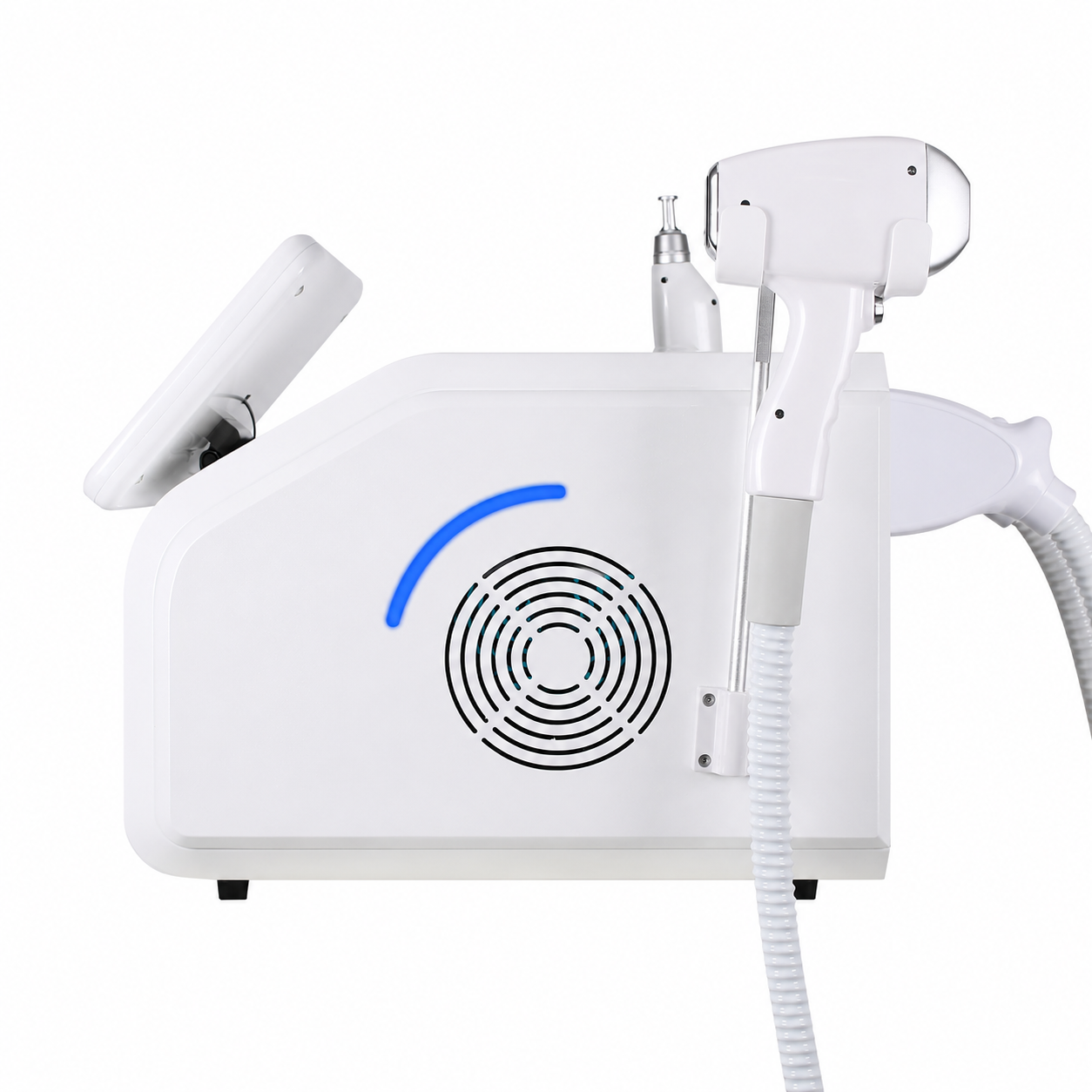

Desktop 2-in-1 Laser System(LT-312) – Diode Laser for Hair Removal + Picosecond Laser

A compact, professional-grade desktop device for aesthetic clinics and beauty centers, combining two independent laser modules in one unit.

Product Overview
This desktop 2-in-1 laser system integrates two independent functional modules—Diode Laser Module (for hair removal applications) and Picosecond Laser Module (for tattoo/pigmentation treatments)—within a space-saving desktop enclosure. The compact design allows easy placement on treatment counters or portable carts. Both handpieces operate independently, providing flexibility for various professional applications.

How It Works

Diode Laser Module – Hair Removal
The diode laser emits specific wavelengths of light (typically 755nm, 808nm, and/or 1064nm) that are preferentially absorbed by melanin in the hair follicle. The energy is converted into localized thermal effects, targeting the hair growth structure. The handpiece is applied directly to the skin with standard contact cooling (no active TEC cooling).

Picosecond Laser Module – Tattoo & Pigmentation Treatments
The picosecond laser delivers energy with pulse durations measured in picoseconds (10⁻¹² seconds). This ultra-short pulse width generates a photoacoustic effect, fragmenting target pigment particles (tattoo ink or melanin) into smaller particles that can be naturally processed by the body. Multiple wavelengths allow operators to address pigments at different depths. The system includes non‑invasive treatment handpieces for 532nm and 1064nm wavelengths. A separate handpiece is provided for the 1320nm wavelength (non‑invasive specification not applicable).

Key Design & Technical Features

Common Applications (as intended by device design)

Diode Laser Module:

• Professional hair removal on various body areas (legs, arms, underarms, back, chest, bikini line, face)

Picosecond Laser Module:

• Tattoo ink particle fragmentation (multiple ink colors) – using 532nm & 1064nm non‑invasive handpieces

• Pigmented lesion treatments – using 532nm & 1064nm non‑invasive handpieces

• Additional applications with 1320nm handpiece (as per clinical guidance)

Typical Operation Process

1. Client Assessment – Perform comprehensive screening (skin type, hair/pigment characteristics, medical history, contraindications).

2. Parameter Selection – Select the appropriate module (Diode or Picosecond), wavelength, energy level, frequency, and pulse duration.

3. Preparation – Clean treatment area. Apply protective eyewear to operator and client.

4. Treatment Delivery – Apply handpiece to target area with appropriate technique. No active cooling is provided on the handpiece; standard contact application is used.

5. Post‑Treatment Care – Provide aftercare instructions. Apply soothing skincare as needed.

Technical Parameters Diode Laser Module (Hair Removal):

Picosecond Laser Module (Tattoo / Pigment):

Packaging Information

Safety & Contraindications (Must Read)

✅ Operator Requirements:

• Professional use only; operator training required

• Eye protection must be worn by both operator and client during treatment

❌ Absolute Contraindications (do not treat):

• Pregnancy or breastfeeding

• Active skin infections, open wounds, eczema, or dermatitis in the treatment area

• Recent sun exposure (tanned skin) in the treatment area

• Photosensitivity disorders or use of photosensitizing medications

• Malignant lesions in the treatment area

• Use of isotretinoin (Accutane) within the past 6 months

• Epilepsy or conditions triggered by light stimulation

• Bleeding disorders or use of anticoagulants

• Implantable electronic devices (pacemakers, defibrillators, etc.)

• Keloid or hypertrophic scar tendency

⚠️ Possible temporary effects (typically resolve within days to weeks):

• Temporary redness (erythema) in the treated area

• Mild swelling (edema)

• Temporary tenderness or discomfort

• Temporary changes in skin pigmentation (rare)

⚠️ Important Operational Notes:

• Always perform a test spot on a small inconspicuous area before full treatment

• This device does not include active handpiece cooling; monitor skin response carefully and adjust parameters as needed

• Different skin types and hair colors may require different wavelength and energy settings

• Proper client screening is essential for safe operation

Frequently Asked Questions

Q: Does this device have cooling on the handpiece?
A: No, this desktop model does not include active TEC cooling on the handpieces. Treatment relies on standard contact application. Operators should monitor skin response and adjust parameters accordingly.

Q: What is the difference between the Diode and Picosecond modules?
A: The Diode module uses thermal mechanisms for hair reduction applications. The Picosecond module uses ultra-short pulse widths (photoacoustic effect) for tattoo ink and pigmentation treatments. The picosecond module includes non‑invasive handpieces for 532nm and 1064nm, and a separate handpiece for 1320nm.

Q: Is the 1320nm handpiece non‑invasive?
A: No, only the 532nm and 1064nm handpieces are specified as non‑invasive. The 1320nm handpiece is provided as a standard applicator.

Q: Can both modules be used on the same client during the same session?
A: Clinical guidance suggests allowing adequate healing time between different laser modalities. Separate sessions may be recommended. Operators should assess skin condition before proceeding.

Q: How many sessions are typically needed?
A: The number of sessions varies depending on individual factors such as hair color, skin type, tattoo ink density, or pigment depth. An operator can develop a personalized plan based on client assessment.

Q: Is the device suitable for all skin types?
A: Different wavelengths have different absorption and penetration characteristics. Operators must select appropriate parameters based on individual client assessment. Test spots are recommended.

Why Choose Our Desktop 2-in-1 Laser System?

• Two functions in one compact desktop unit – saves counter space

• Independent diode and picosecond handpieces

• Picosecond module includes non‑invasive handpieces for 532nm & 1064nm, plus a 1320nm handpiece

• Factory-direct pricing without brand markups

• Full warranty and technical support

• Free user manual + video training access
