Desktop 2‑in-1 IPL System(CL-512) – Dedicated Hair Removal + Photorejuvenation

A professional desktop intense pulsed light device for aesthetic clinics, featuring a dedicated IPL hair removal handpiece and a separate photorejuvenation handpiece with 11 exchangeable optical filters. Equipped with an emergency stop button.

Product Overview

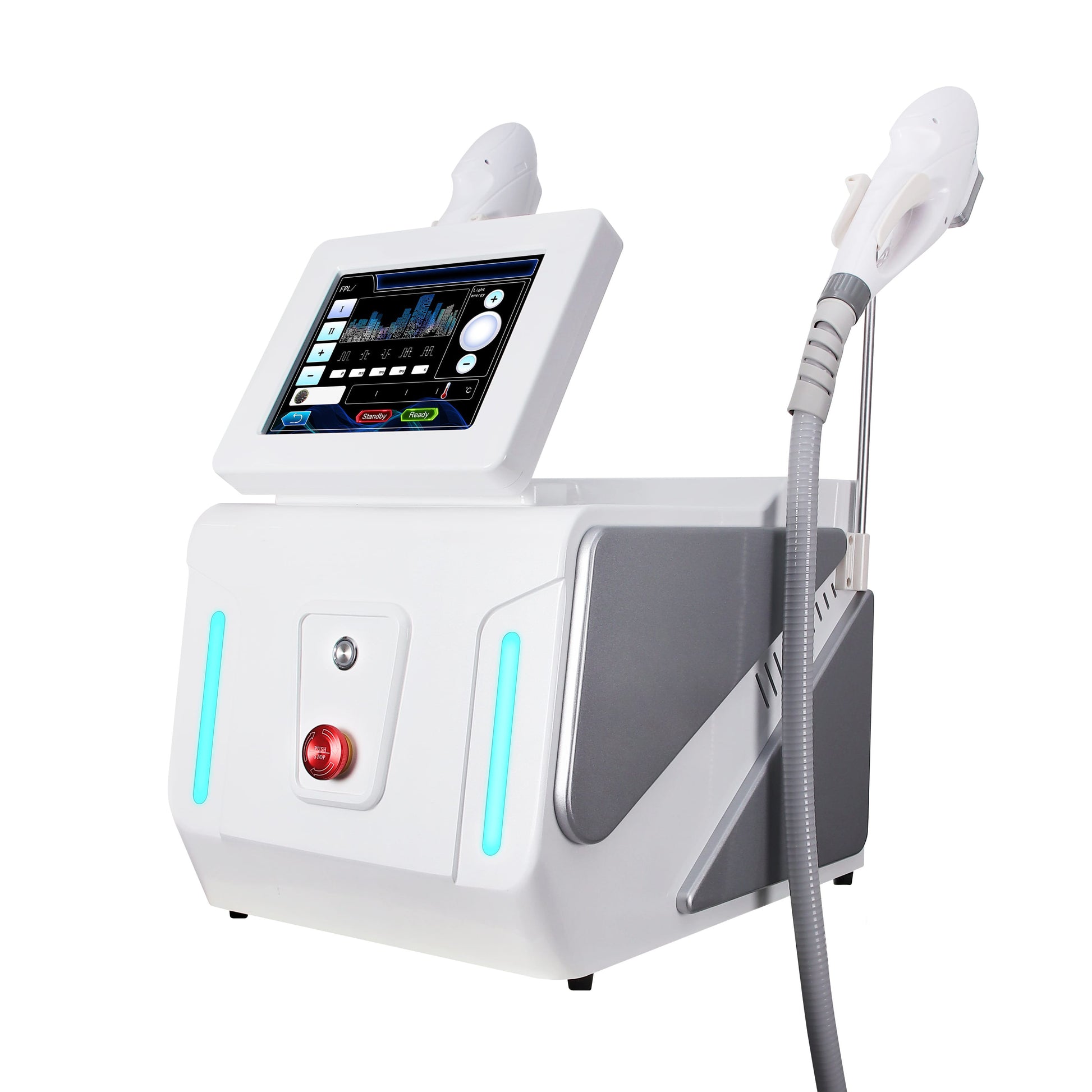

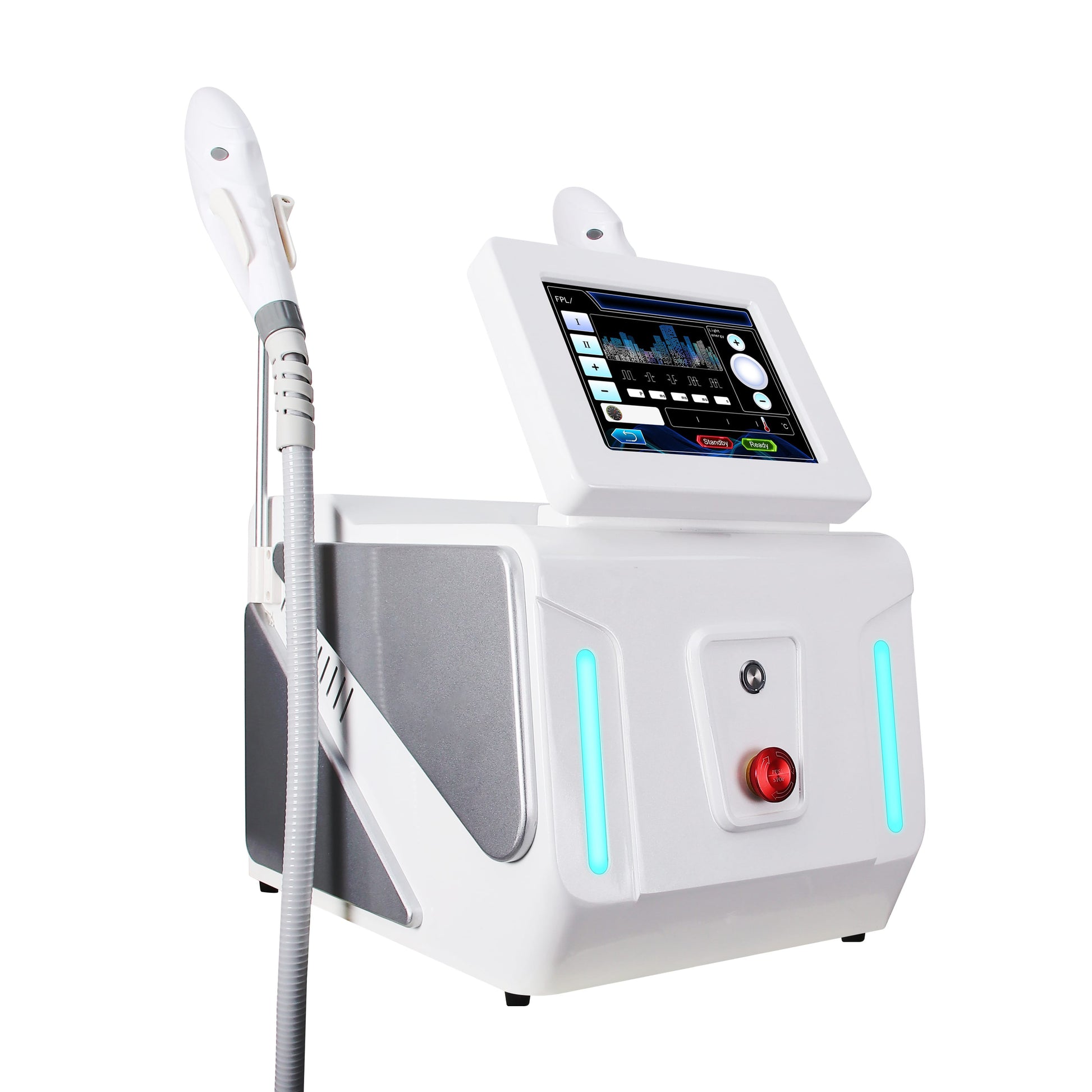

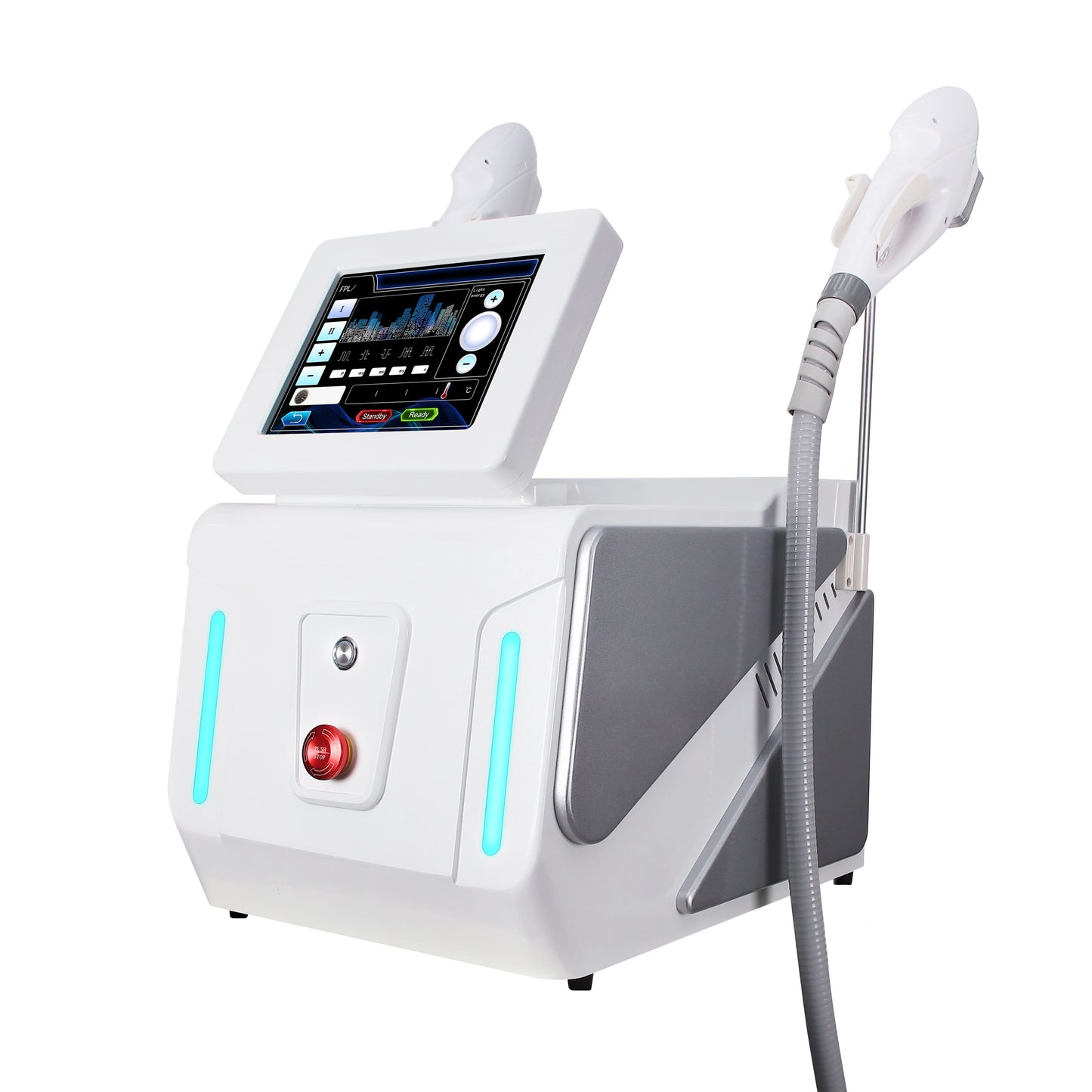

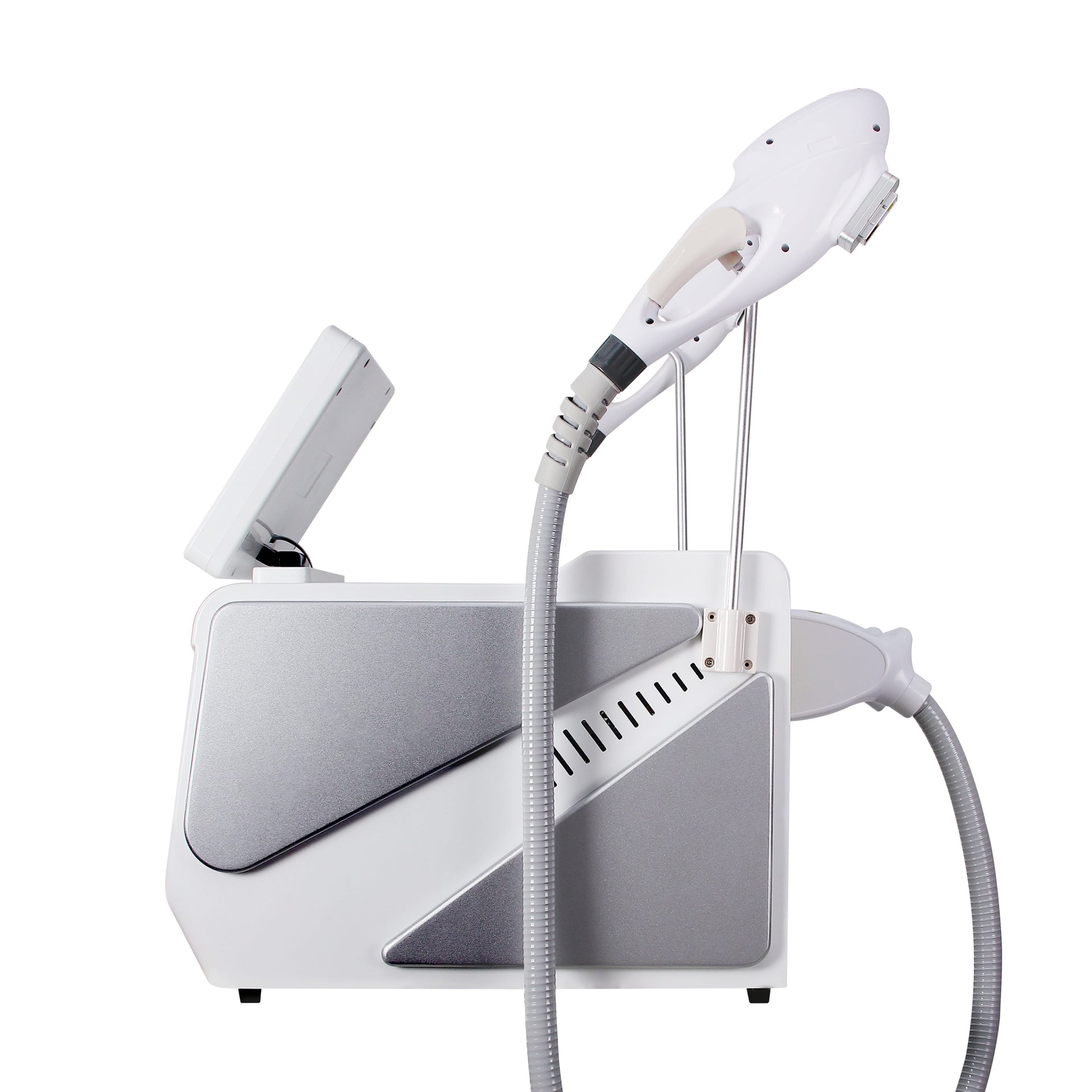

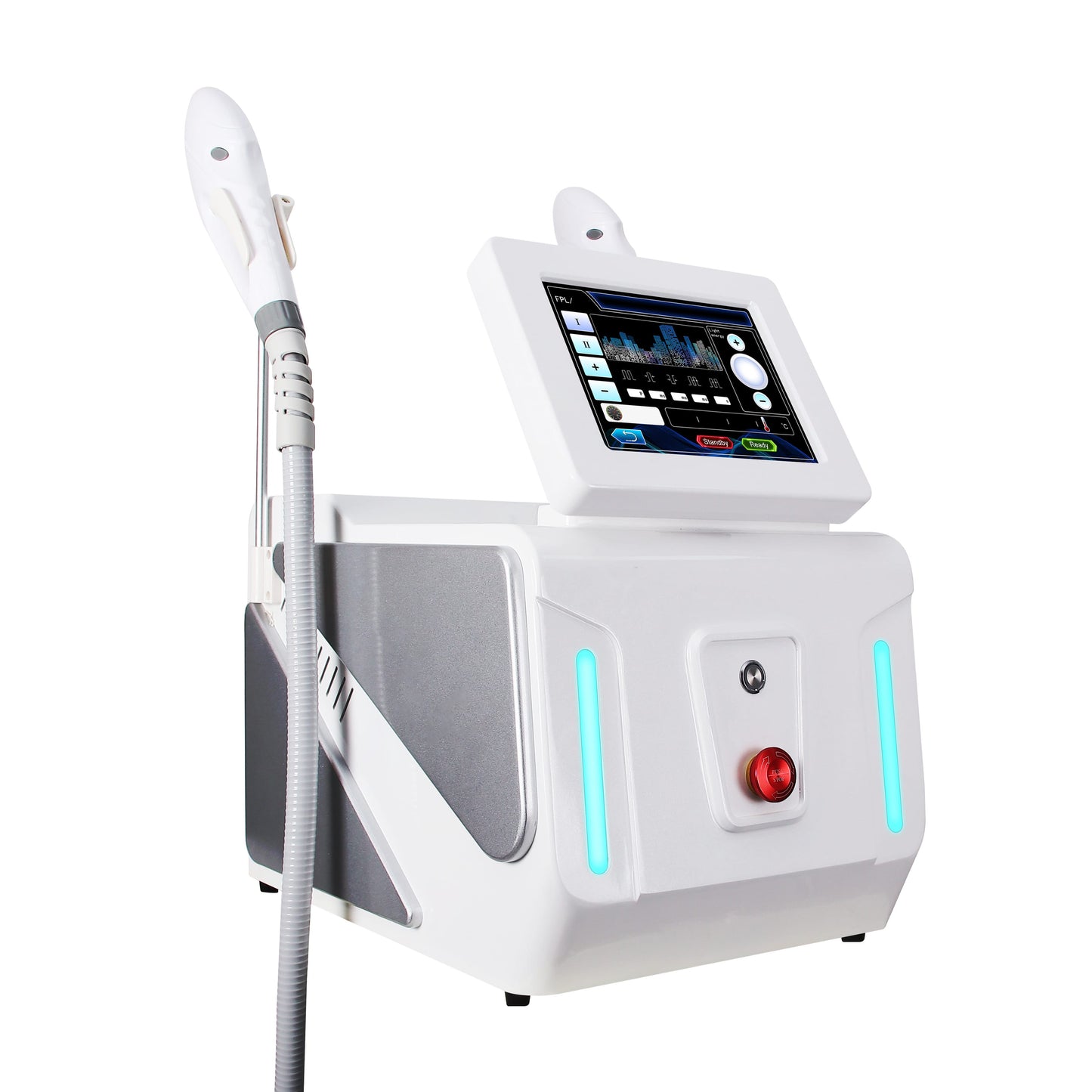

This desktop 2‑handpiece IPL system is designed for professional aesthetic applications. The device integrates two independent handpieces: a dedicated IPL hair removal handpiece and a photorejuvenation handpiece that accepts 11 exchangeable optical filters for versatile skin treatments. The compact desktop form factor allows easy placement on treatment counters. A dedicated emergency stop button is located on the host console for immediate power cut‑off when needed. Package dimensions: 62×48×58 cm, gross weight 40 kg.

How It Works – IPL Technology

Both handpieces operate on the principle of selective photothermolysis. Intense pulsed light (IPL) generates high‑intensity, broad‑spectrum light pulses. Different tissue chromophores (melanin, hemoglobin, water) absorb light energy at specific wavelengths, converting it into localized effects within target tissues.

The system uses two distinct handpieces to separate the applications:

Handpiece 1 – IPL Hair Removal Handpiece (Dedicated)

This handpiece is optimized for hair reduction treatments. It emits light energy within a wavelength range particularly absorbed by melanin in hair follicles. Typically, this handpiece operates with a fixed filter or a selection of filters in the 640–755nm range (e.g., 640nm, 690nm, 755nm) for effective hair reduction across various skin types. The handpiece is applied directly to the skin with appropriate contact.

Key Applications (Hair Removal Handpiece):

• Professional hair reduction on legs, arms, underarms, back, chest, bikini line, and face (excluding eye area)

Handpiece 2 – Photorejuvenation Handpiece (with 11 Exchangeable Filters)

This handpiece is designed for skin rejuvenation, pigmentation, vascular, acne, and cell activation treatments. The operator selects the appropriate optical filter from the 11‑filter set to narrow the output spectrum to target specific chromophores.

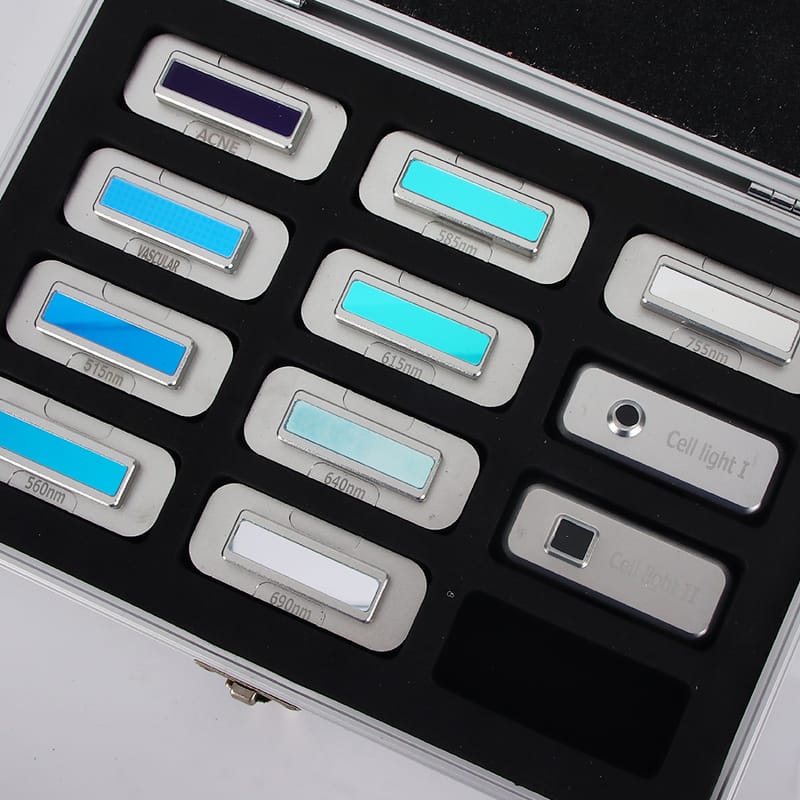

Included Filters & Their Primary Applications:

The photorejuvenation handpiece is applied to the target area after selecting the appropriate filter and setting parameters.

Key Design & Technical Features

Technical Parameters (Please confirm based on your actual device)

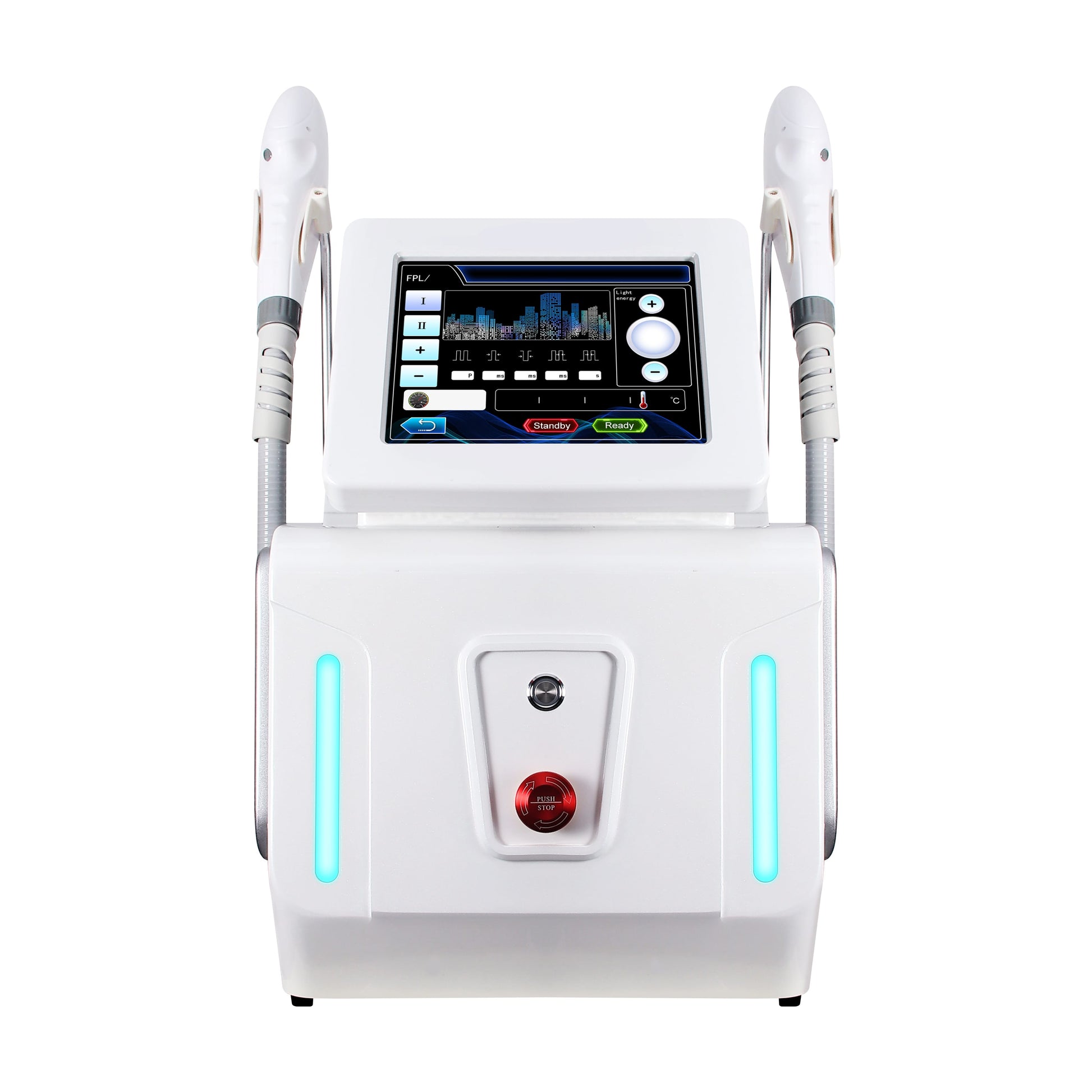

Emergency Stop Button – Safety Feature

Packaging Information

Typical Operation Process

1. Client Assessment – Skin type, hair color, medical history, contraindications.

2. Handpiece Selection – Choose hair removal handpiece or photorejuvenation handpiece based on treatment goal.

3. Filter Selection (photorejuvenation handpiece only) – Install appropriate filter for the target condition.

4. Parameter Setting – Adjust energy, pulse duration, frequency via touchscreen.

5. Protection – Operator and client wear IPL‑safe eyewear.

6. Treatment – Apply handpiece to target area with gentle contact, deliver pulses.

7. Post‑Treatment – Provide aftercare instructions, apply soothing products if needed.

Safety & Contraindications (Must Read)

✅ Operator Requirements:

• Professional use only; operator training required

• IPL‑safe eyewear must be worn during operation

• All operators must know the emergency stop button location

❌ Absolute Contraindications (do not treat):

• Pregnancy or breastfeeding

• Active skin infections, open wounds, eczema, dermatitis in treatment area

• Photosensitivity disorders or photosensitizing medications

• Malignant lesions

• Isotretinoin (Accutane) within past 6 months

• Epilepsy or light‑induced conditions

• Bleeding disorders or anticoagulants

• Implantable electronic devices (pacemaker, etc.)

• Keloid tendency

⚠️ Possible temporary effects (typically resolve within days):

• Redness, mild swelling, tenderness, rare pigment changes

⚠️ Important Operational Notes:

• Perform test spot before full treatment

• Select correct filter for the indication

• Emergency stop button should be tested periodically

Frequently Asked Questions

Q: What is the difference between the two handpieces?
A: The hair removal handpiece is dedicated to hair reduction treatments. The photorejuvenation handpiece uses 11 exchangeable filters to treat pigmentation, vascular lesions, acne, and skin rejuvenation.

Q: Can the hair removal handpiece use the same filters?
A: No, the two handpieces are designed separately. The hair removal handpiece typically has a fixed or limited filter range optimized for hair reduction.

Q: What does the emergency stop button do?
A: Pressing the red button immediately cuts off system power and light output for instant safety shutdown.

Q: Does the device have cooling on the handpieces?
A: No active handpiece cooling. Treatment relies on proper parameter selection and technique.
